Floor and Wall Mount Door Holder

R1,107.19

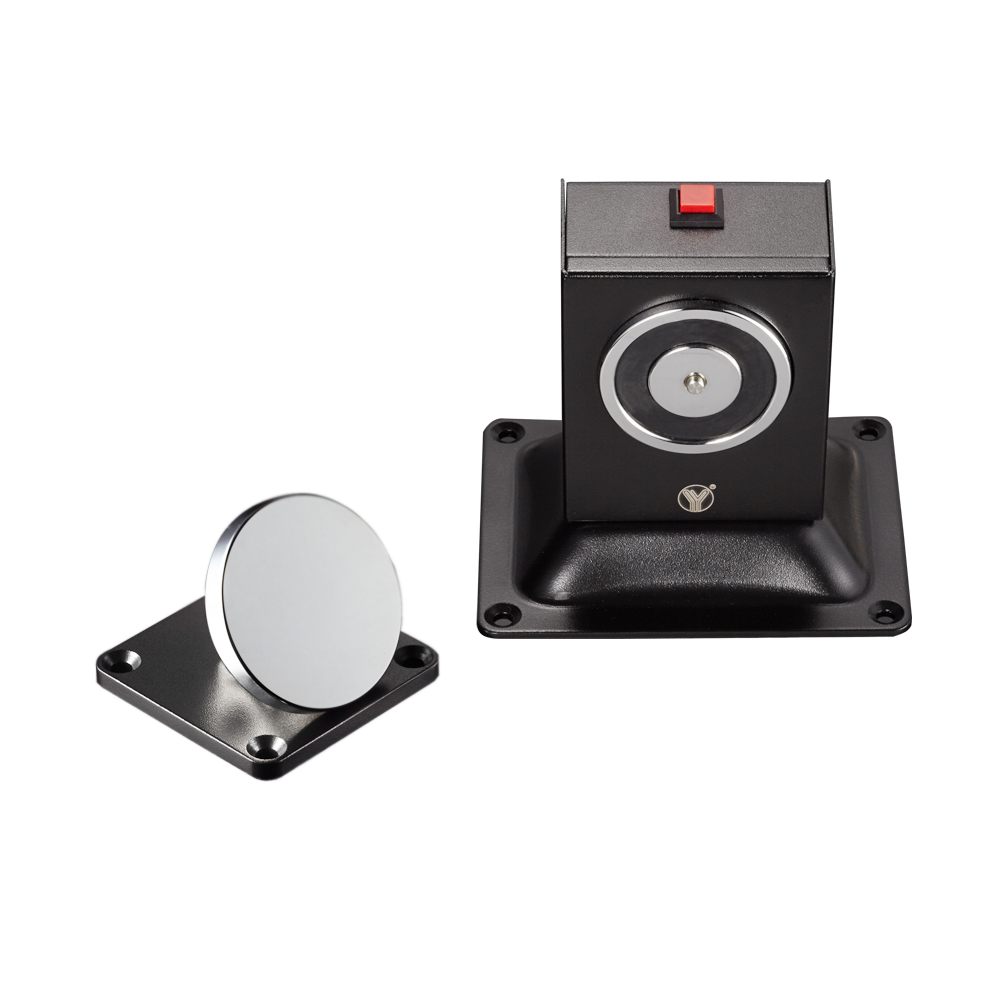

YD-605 is a wall mount and floor mount door holder.which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.

SKU: YLI YD-605 Category: Tag:

Description

Product Parameter Parameter Description
Dimensions  L116xW93xH118(mm)
Holding Force  50kg(110Lbs)
Voltage  DC24V+10%(12VDC need order)
Current Draw  12V/180mA     24V/70mA
Optional   Manual door release button
Suitable for  All Kinds of Single & Double Smokeproof Door
Surface Temp  ≤+20
Operating Temp  -10~+55℃(14-131F)
Suitable Humidity  0~90%(relative humidity)
Finishes for Shell  High Temperature Paint and Environmental Protection
Finishes for Armature  Zinc
Weight  1.4kg

Download Data Sheet
